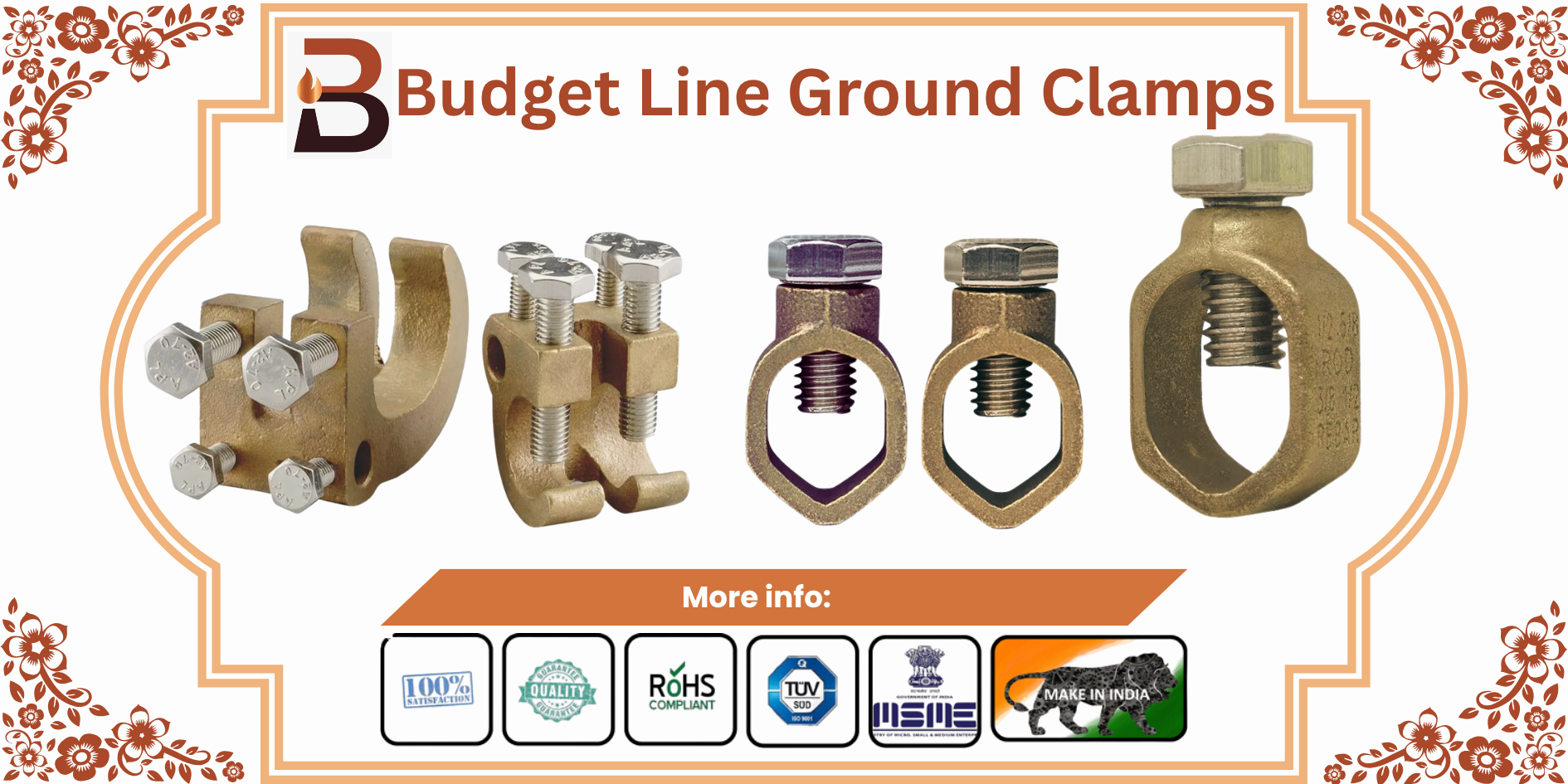

Budget Line Ground Clamps
⚡ Budget Line Ground Clamps – Product Detail
Budget Line Ground Clamps are cost-effective grounding solutions designed for basic earthing applications in residential, light commercial, and temporary installations. While economical, these clamps maintain essential performance characteristics like secure conductor-to-rod contact, basic corrosion resistance, and simple installation. They are a practical choice for projects with tight budgets or low-risk environments..
- Budget Ground Clamps
- Low-cost Grounding Clamps
- Economical Ground Rod Clamp
- Basic Electrical Ground Clamp
- Ground Clamp for Residential Use
- Light Duty Earthing Clamp
- Affordable Grounding Connector
- Brass Budget Line Clamp
- Electrical Ground Clamp Economy Series
- Entry-level Grounding Clamp
🛠️ Construction & Design:
-
Material: Cast bronze or economical brass alloy (depending on model)
-
Clamp Type: Simple two-piece saddle clamp or U-bolt configuration
-
Screw Hardware: Mild steel or plated steel screws (standard); stainless steel optional
-
Conductor Fit: Accepts bare copper conductors, both solid and stranded
-
Surface Finish: Natural or zinc-plated for light corrosion resistance
📏 Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | Cast Brass / Bronze Alloy |
| Rod Size Compatibility | 3/8” to 3/4” (Standard) |
| Conductor Range | #10 AWG to 1/0 AWG |
| Finish | Natural / Zinc-Plated |
| Torque Rating | ~50 in-lbs (varies by model) |
| Installation Tools | Standard screwdriver or wrench |
| Standards | May not be UL Listed (check model) |
⚙️ Applications:
-
Residential electrical grounding
-
Temporary jobsite earthing
-
Grounding of fence posts, panels, or light poles
-
Solar panel frame grounding (budget installations)
-
Ideal for non-critical or low-corrosion environments
🌟 Key Features & Benefits:
-
✔️ Economical choice for price-sensitive projects
-
✔️ Provides adequate electrical contact in standard use cases
-
✔️ Fast and easy installation
-
✔️ Compatible with most standard copper ground rods
-
✔️ Lightweight and compact design
🔧 Available Variants:
-
BL-38 – For 3/8” rods
-
BL-50 – For 1/2” rods
-
BL-58 – For 5/8” rods
-
BL-75 – For 3/4” rods
(Optional conductor sizes available based on model)
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
