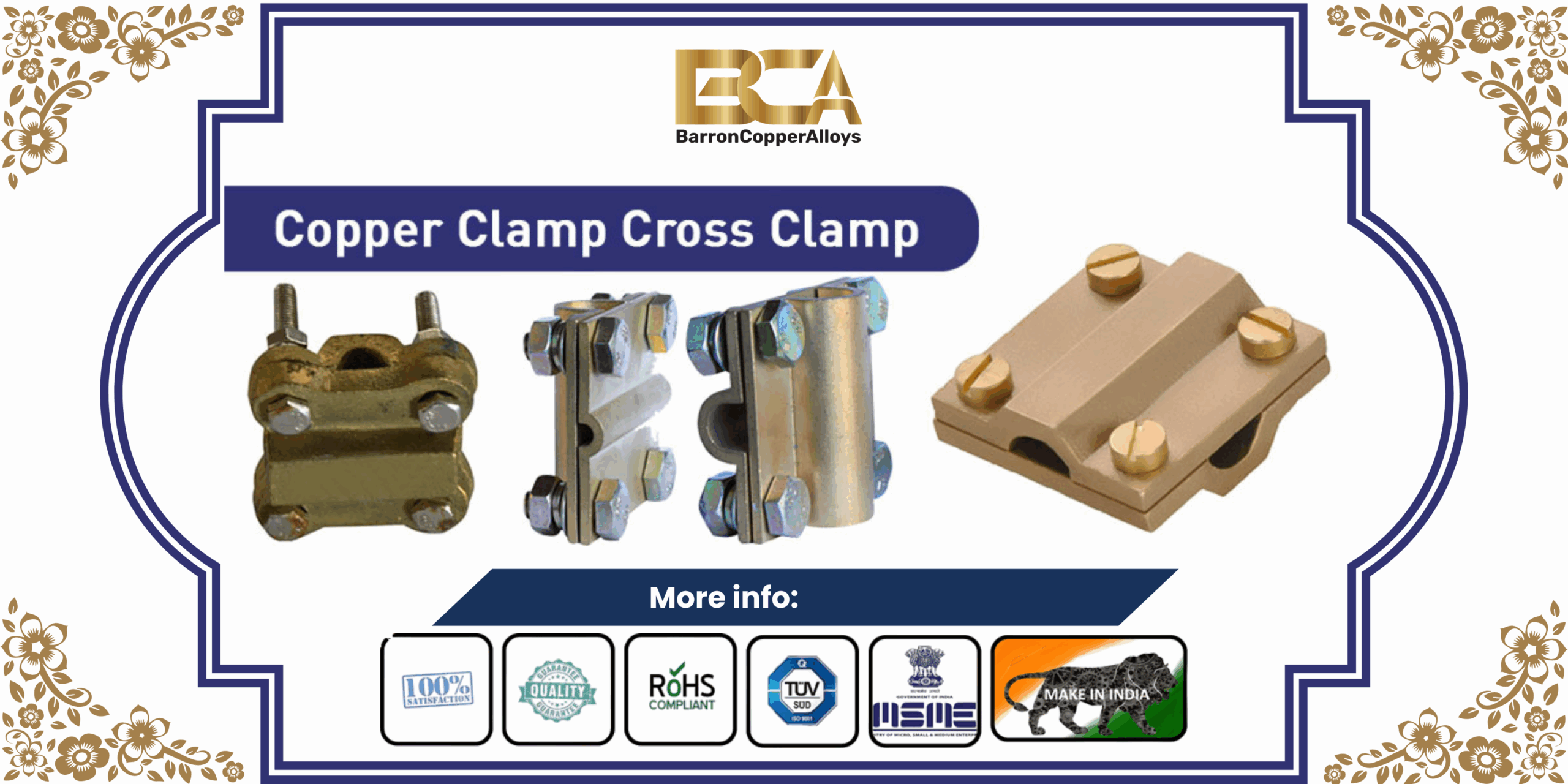

Copper Clamp Cross Clamp
Copper Clamp Cross Clamp - Overview
Here’s an Copper Clamp Cross Clamp overview of both the Copper Clamp and Copper Cross Clamp so you can see their uses and differences.
copper clamp, copper cross clamp, grounding clamp, lightning protection clamp, electrical copper clamp, non-sparking clamp, copper earth clamp, copper rod clamp, copper conductor clamp, corrosion resistant clamp, high conductivity clamp
Copper Clamp – Overview
A Copper Clamp is a fastening device made from copper or copper alloys, used to secure, connect, or ground electrical conductors, pipes, or metal structures.
-
Material: Pure copper or beryllium copper for high conductivity.
-
Key Uses:
-
Electrical grounding (connects conductor to earth rod or pipe)
-
Welding ground connections
-
Non-sparking clamping in hazardous environments
-
Marine and chemical plant applications due to corrosion resistance
-
-
Advantages:
-
High electrical and thermal conductivity
-
Corrosion resistance
-
Non-sparking safety
-
Copper Cross Clamp – Overview
A Copper Cross Clamp is a specialized clamp designed to connect two crossing conductors or rods—often in a “+” shape—securely together.
-
Design: Usually has a cross-shaped body or joint area allowing perpendicular connections.
-
Key Uses:
-
Bonding perpendicular earth rods in grounding grids
-
Joining round conductors in lightning protection systems
-
Ensuring strong, low-resistance mechanical and electrical connection
-
-
Advantages:
-
Precise perpendicular alignment
-
Maintains strong grip without damaging conductors
-
Copper body ensures excellent conductivity and corrosion resistance
-
Main Difference
-
Copper Clamp → General-purpose clamping for grounding, welding, or holding tasks.
-
Copper Cross Clamp → Specifically for perpendicular conductor-to-conductor or rod-to-rod connections in grounding and lightning protection systems.
Copper Clamp – Technical Details
| Parameter | Specification |
|---|---|
| Material | High conductivity copper (minimum 99% pure) or beryllium copper |
| Finish | Natural copper or tinned copper (for enhanced corrosion resistance) |
| Sizes | Fits conductor diameters from 6 mm to 50 mm depending on model |
| Design | “C”-type, flat jaw, or split-body design with bolt fastening |
| Fasteners | Copper alloy bolts, brass bolts, or stainless steel bolts |
| Electrical Conductivity | ≥ 97% IACS (International Annealed Copper Standard) |
| Corrosion Resistance | Excellent against moisture, salt, and chemicals |
| Standards | BS 951, IEC 62561, UL Listed for grounding applications |
| Applications | Earthing, welding ground connections, marine, and chemical industry use |
Copper Cross Clamp – Technical Details
| Parameter | Specification |
|---|---|
| Material | High conductivity copper or bronze |
| Finish | Natural polished copper or tinned finish |
| Sizes | For crossing conductors of 6 mm² to 70 mm² or rods up to 20 mm dia |
| Design | Cross-shaped body allowing 90° perpendicular conductor or rod connection |
| Fasteners | Copper alloy or brass bolts and nuts |
| Electrical Conductivity | ≥ 95% IACS |
| Mechanical Strength | High clamping force to ensure low-resistance joint |
| Corrosion Resistance | High, suitable for outdoor & marine installations |
| Standards | IEC 62561-1 (Lightning Protection Components), UL standards for bonding |
| Applications | Lightning protection systems, earthing grids, grounding meshes |
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
