Copper Earth Blocks
Copper Earth Blocks – Details

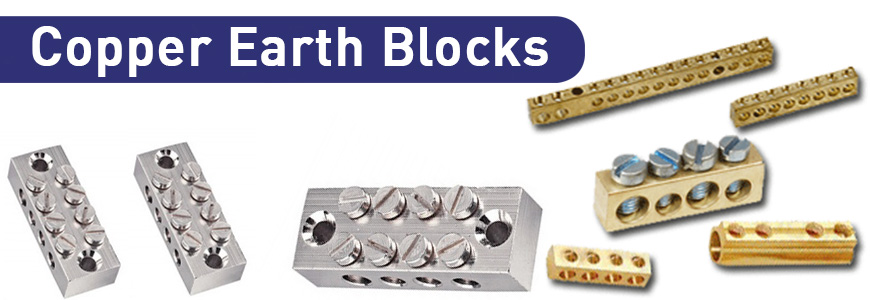

Copper Earth Blocks are grounding components used in electrical installations to create a secure and reliable earth termination point. They are primarily used in earthing systems to provide a convenient and corrosion-resistant junction point for bonding multiple earthing conductors.
-
Copper Earth Blocks
-
Electrical Grounding Blocks
-
Copper Earthing Terminal
-
Multi-terminal Earth Block
-
Copper Ground Connector
-
Electrical Earthing Accessories
-
Copper Earth Strip Connector
-
Copper Grounding Busbar
-
Panel Earthing Block
-
Copper Earth Link
✅ Technical Details:
| Feature | Specification |
|---|---|
| Material | High conductivity Electrolytic Copper (EC Grade) |
| Finish | Natural or Tinned (on request) |
| Block Size | Customizable – commonly 2 to 10 hole configurations |
| Conductor Capacity | Accepts 2.5 mm² to 70 mm² cables (or more, based on design) |
| Fixing Type | With mounting holes or clamps |
| Number of Terminals | Varies: 2, 4, 6, 8, 10-hole blocks |
| Accessories | Brass Screws, Clamps, Mounting Plate (optional) |
| Standard Compliance | IS 3043, IEC 62561, BS 7430 |
🧰 Applications:
- Electrical panels and switchgear earthing
- Distribution boards
- Earthing in telecom towers and substations
- Bonding of multiple copper conductors
- Control & instrumentation panels
🛠️ Installation Copper Earth Blocks:
- Mount the earth block securely using screws or brackets.
- Strip the copper conductor ends.
- Insert the conductors into the terminals.
- Tighten the screws to ensure a secure and conductive connection.
- Connect the main earthing conductor to the block to link to the ground rod or earthing grid.
🧩 Optional Features:
Insulated Base Plate – for isolation from the mounting surface
Labeling Provision – for identifying circuits or conductors
Locking Screws – for vibration-resistant installations
🔒 Advantages:
- High corrosion resistance
- Excellent electrical conductivity
- Compact design for panel mounting
- Long operational life
- Easy to install and maintai
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
