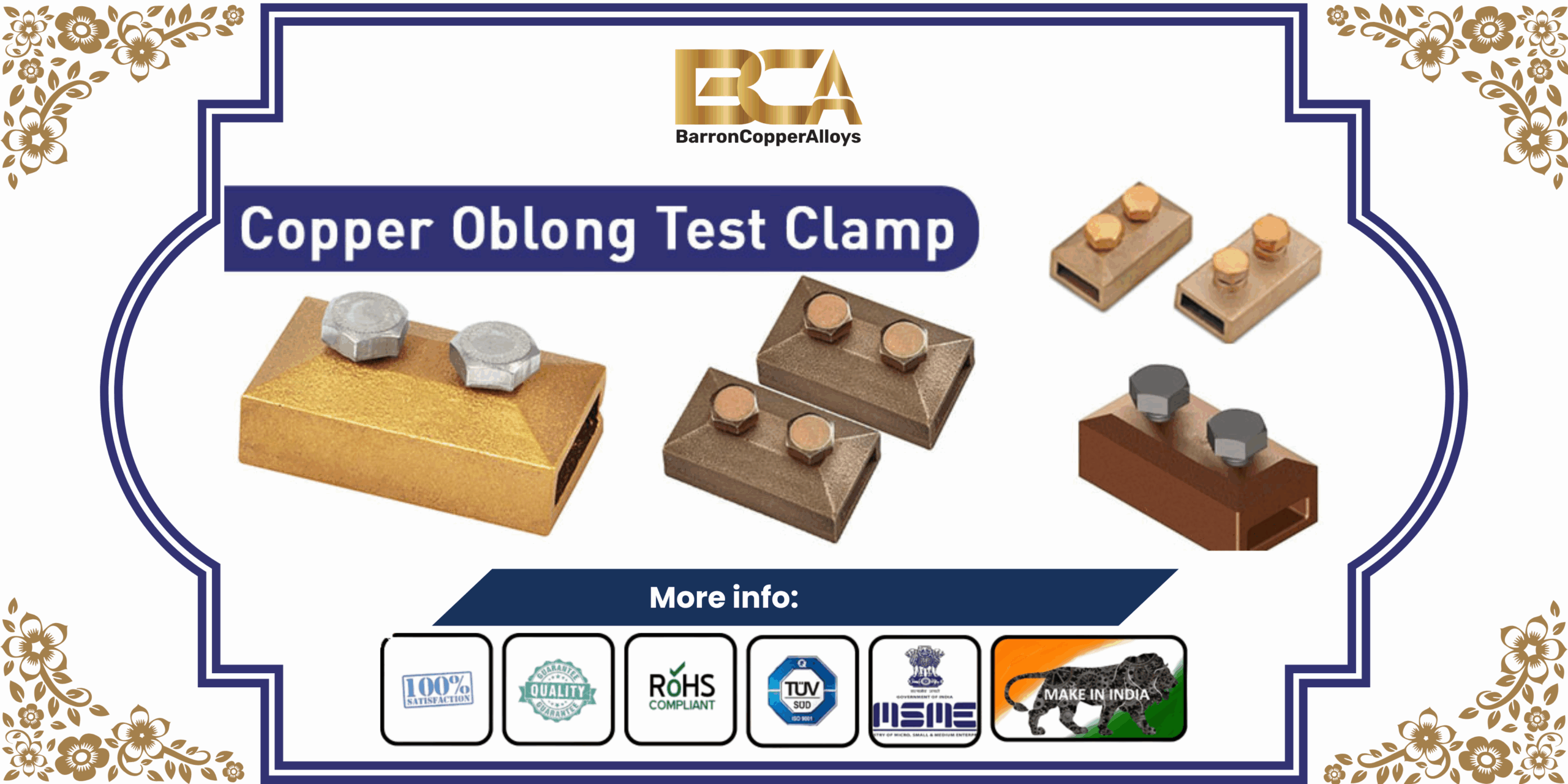

Copper Oblong Test Clamp
🔧 Copper Oblong Test Clamp – Overview
Here’s a comprehensive overview of the Copper Oblong Test Clamp, including its description, technical details, uses, and variations—tailored for engineering, procurement, or listing purposes.
A Copper Oblong Test Clamp** is an electrical grounding and bonding accessory used for connecting flat copper strips, tapes, or conductors to earthing rods or other grounding components. Its oblong shape provides a firm mechanical and electrical contact point, often used for earthing test junctions.
Copper oblong test clamp
Earthing test clamp
Copper grounding clamp
Oblong copper connector
LPS test clamp
Copper flat strip clamp
Earth conductor junction clamp
Test joint clamp copper
Lightning protection clamp
Copper tape bonding clamp
📄 Technical Details
| Parameter | Specification |
|---|---|
| Product Name | Copper Oblong Test Clamp |
| Material | High-Conductivity Electrolytic Copper (99.9% purity) |
| Shape | Oblong / Oval with central hole or bolt slot |
| Conductor Compatibility | Copper Strip/Tape 25×3 mm, 25×6 mm, 50×6 mm, etc. |
| Fastening Method | M8/M10 Brass or Stainless Steel Bolt + Nut (Hex or Wing) |
| Finish | Natural Copper / Tinned Copper / Electroplated |
| Application | Earthing and Lightning Protection Systems (LPS) |
| Standard Compliance | BS EN 62561-1 / IS 3043 / IEC 62305 |
| Installation | Used as a test point between two flat conductors or strip-to-rod |
| Corrosion Resistance | High, suitable for outdoor use |
| Typical Thickness | 3 mm to 6 mm thick copper |
| Mounting | Fixed between earthing strip sections for testing continuity |
⚙️ Applications
- Electrical grounding and earthing systems
- Lightning protection systems
- Inspection/test joints between earth electrodes and conductors
- Telecom and electrical substations
- Renewable energy installations (solar/wind grounding)
🛠️ Variants
| Type | Details |
|---|---|
| Standard Oblong Clamp | Basic flat copper clamp with single bolt hole |
| Heavy-Duty Test Clamp | Thicker body, used in high current systems |
| Tinned Oblong Clamp | Tinned copper version for corrosion-prone zones |
| With Dual Bolt Fixing | Added mechanical strength |
| OEM / Custom Sizes | Can be fabricated based on user specs |
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
