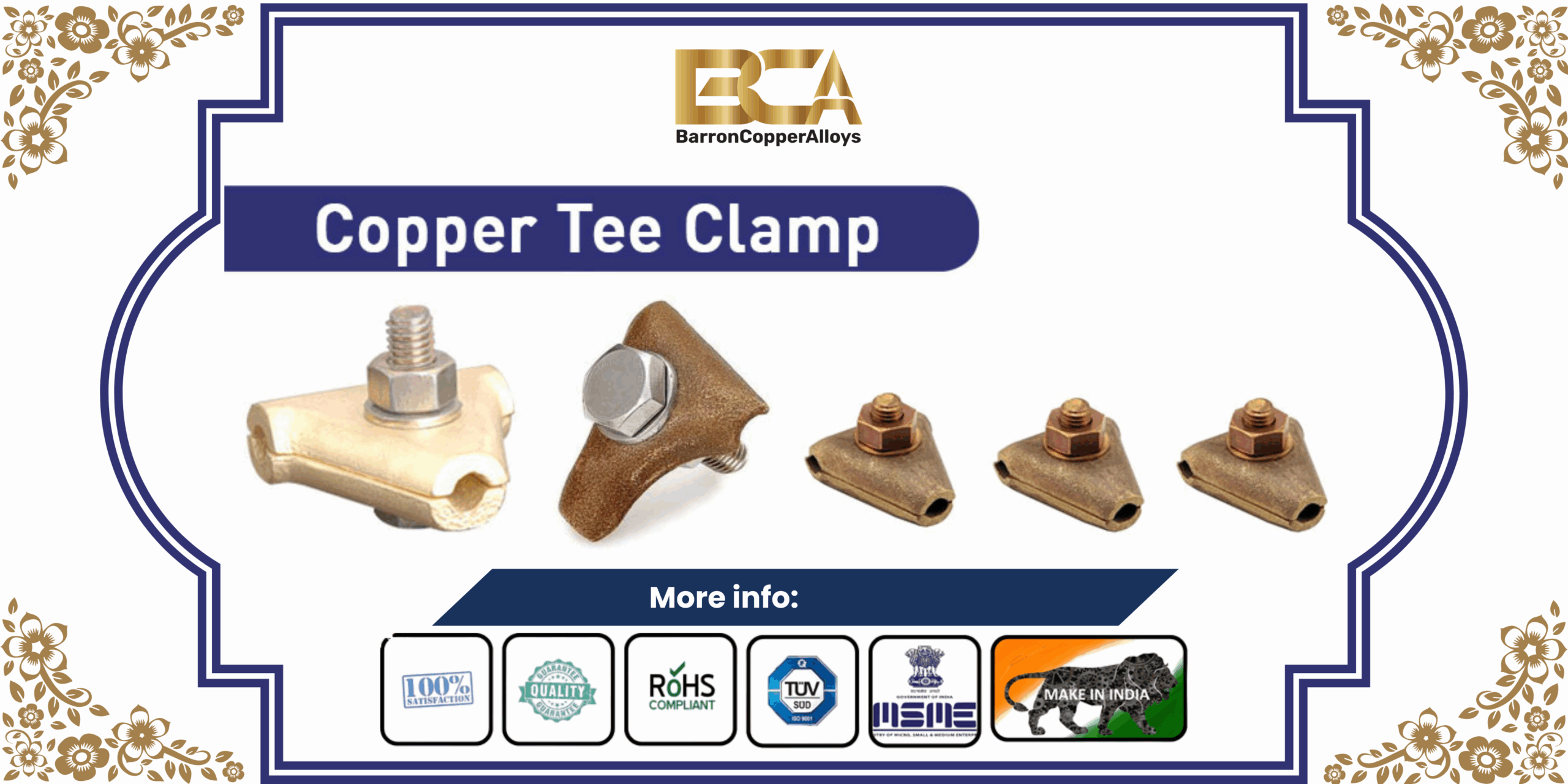

Copper Tee Clamp
🔧 Copper Tee Clamp – Overview
A Copper Tee Clamp is a type of pipe fitting and clamping device commonly used in plumbing, electrical, and HVAC systems. Here’s an overview of its features, uses, and specifications:
A Copper Tee Clamp is a “T"-shaped connector with a clamping feature, designed to join three copper pipes or tubes together — typically at 90° angles. The clamp allows secure and leak-resistant connections without soldering or welding in many cases.
Copper tee clamp
Copper T clamp
Tee clamp fitting
Plumbing tee clamp
Mechanical tee clamp
Copper pipe clamp
HVAC copper fittings
Copper branch clamp
Electrical grounding clamp
Copper T fitting with clamp
Saddle tee clamp
Copper plumbing connectors
Copper mechanical joint
Leak-proof copper clamp
🧱 Key Components:
-
Tee Body (Copper):
The main structure made of copper that forms the T-junction. -
Clamp Mechanism:
A metallic or plastic clamp fitted around the copper tee for secure joining. Often includes:-
Bolts/screws
-
Rubber gaskets or seals (for leak prevention)
-
-
Inlet & Outlets:
-
One inlet (main pipe)
-
Two outlets (branch and continuing line)
-
⚙️ Common Specifications:
| Feature | Details |
|---|---|
| Material | Copper (sometimes alloyed) |
| Sizes Available | 1/2", 3/4", 1", 1.5", 2", etc. |
| Pressure Rating | Varies (typically up to 200 psi) |
| Temperature Range | Up to ~400°F (depends on design) |
| Finish | Natural, tin-plated, or polished |
🛠️ Applications:
| Industry | Use Case |
|---|---|
| Plumbing | Creating branch lines for water or gas |
| HVAC | Refrigerant line splitting |
| Electrical | Grounding rod connections in earthing systems |
| Irrigation | Tapping off main lines |
💡 Advantages:
- Easy to install and remove
- Strong mechanical and leak-proof connection
- Reusable (in some designs)
- No need for soldering (in clamp-type)
⚠️ Considerations:
- Ensure compatibility with pipe size and material
- Check local plumbing/electrical codes
- Over-tightening can deform copper pipe
🔩 Types of Copper Tee Clamps:
-
Standard Tee Clamp
-
Saddle Tee Clamp – clamps directly onto a main pipe without cutting
-
Mechanical Tee Clamp – used in fire protection and large plumbing systems
Copper Tee Clamp – Technical Datasheet
| Parameter | Specification |
|---|---|
| Product Name | Copper Tee Clamp |
| Type | Mechanical Tee Clamp (with clamp fasteners) |
| Material | High-conductivity Copper (C11000 or equivalent) |
| Finish | Plain / Electro Tin Plated / Nickel Plated (as required) |
| Available Sizes | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| Connection Type | Tee (3-way) mechanical clamp |
| Branch Angle | 90° |
| Clamp Mechanism | Dual-bolt / Saddle with rubber gasket |
| Max Operating Pressure | 150–300 PSI (depends on size and clamp type) |
| Temperature Range | -20°C to +200°C (up to 400°F) |
| Seal Material | EPDM / NBR (optional for leak-proof sealing) |
| Certifications | ASTM B88 / UL / FM (if used in fire protection systems) |
| Applications | Plumbing, HVAC, Fire Sprinkler, Grounding Systems |
| Installation Method | Clamped over pipe; bolts torqued to spec |
| Compliance | RoHS / REACH (on request) |
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
