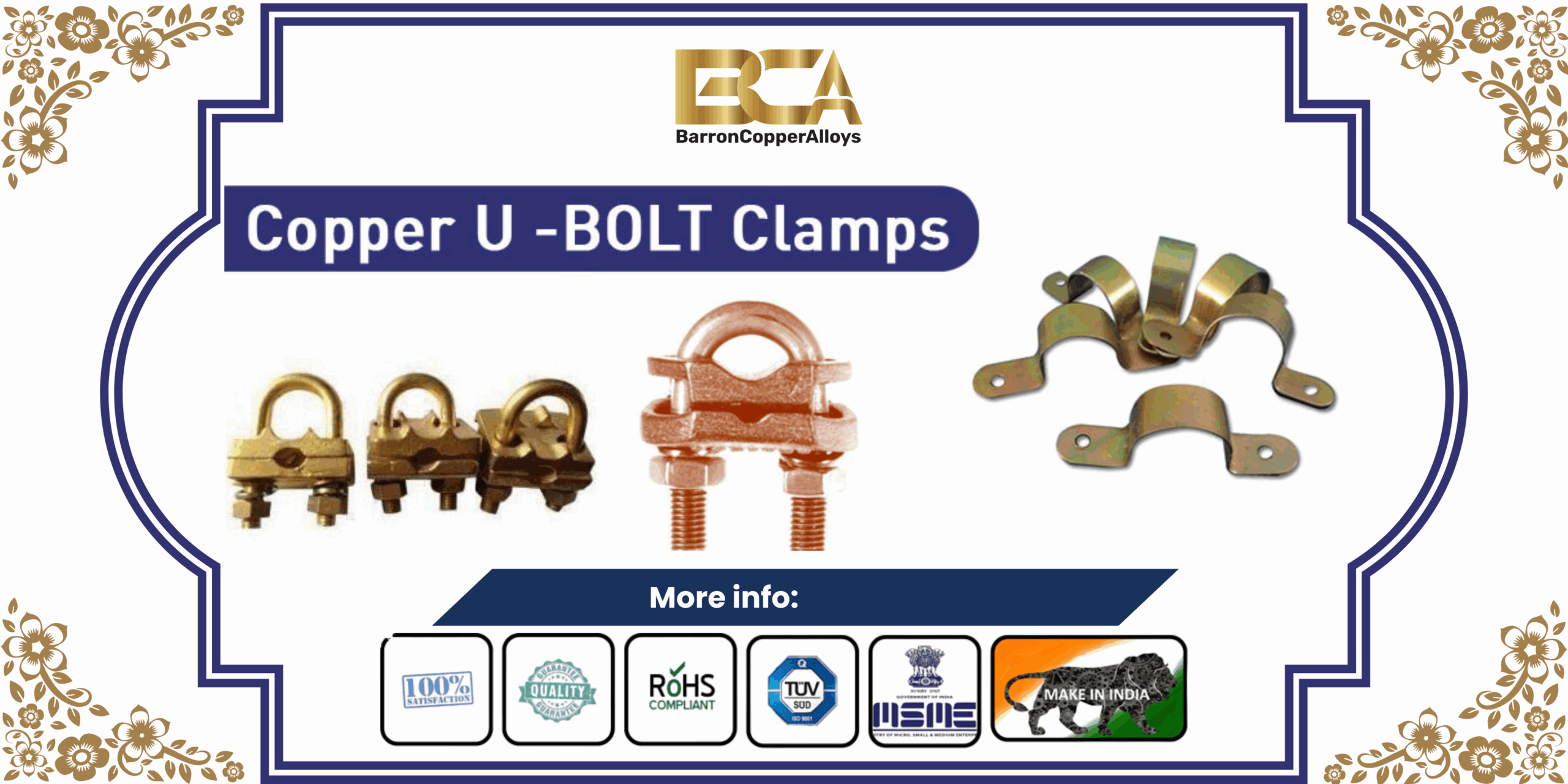

Copper U-BOLT Clamps
Copper U-Bolt Clamps – Detailed Overview
Copper U-Bolt Clamps are mechanical grounding connectors used to securely fix and bond copper conductors (like earthing cables or tapes) to copper-bonded or solid copper earth rods. They are widely used in earthing and lightning protection systems for their strength, reliability, and conductivity.
Copper U-Bolt Clamp
Copper Ground Rod Clamp
U-Bolt Earthing Clamp
Copper Earthing U Clamp
Grounding Rod Cable Clamp
U-Bolt Connector for Earth Rod
Copper Grounding Accessories
Copper Conductor U-Clamp
Electrical Ground Clamp Copper
U-Bolt Clamp for Grounding
✅ Technical Specifications:
| Feature | Details |
|---|---|
| Product Name | Copper U-Bolt Clamp |
| Material | High-Conductivity Electrolytic Copper or Copper Alloy (Brass/Gunmetal) |
| Finish | Natural / Tinned Copper (optional for corrosion resistance) |
| Conductor Type | Stranded Copper Wire, Copper Tape, Solid Circular Conductor |
| Compatible Rod Sizes | 12.7 mm (1/2"), 14.2 mm (9/16"), 16 mm (5/8"), 20 mm (3/4"), etc. |
| Conductor Size Range | 6 mm² to 95 mm² (or customized sizes) |
| Fixing Method | Threaded U-Bolt with Hex Nuts and Saddle Plate |
| Standards | IS 3043, BS 7430, IEC 62561-1 |
🛠️ Design Features:
-
U-Shaped Bolt: Fits over the earth rod or conductor
-
Saddle Plate: Ensures secure and flat connection to the rod
-
Nuts & Washers: Provide strong mechanical grip and stable connection
-
Flat or Curved Saddles: To match the profile of rods or conductors
🔧 Applications:
- Earthing in electrical power distribution systems
- Lightning protection grounding networks
- Solar energy systems grounding
- Substations, telecom towers, and industrial panels
- Bonding of copper tape/wire to ground rods or structures
🔒 Key Benefits:
- Excellent electrical conductivity
- Corrosion-resistant and weatherproof
- Reusable and easy to install
- Provides firm mechanical and electrical connection
- Suitable for indoor and outdoor applications
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
