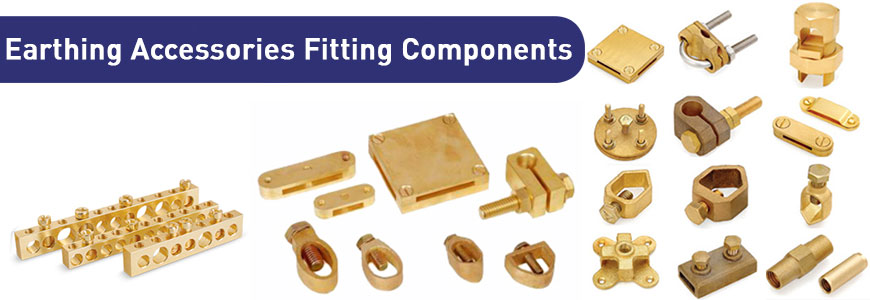

Earthing accessories fitting components are a range of metallic and non-metallic parts used to secure, connect, and enhance earthing systems. These components help ensure safe, efficient, and long-lasting dissipation of electrical fault currents into the ground.

They are widely used in power distribution, telecommunications, renewable energy, and industrial installations.

Earthing Accessories

Grounding Fitting Components

Copper Bonded Rod Clamps

Earthing Rod Accessories

Cable Lugs and Ground Clamps

Electrical Grounding Hardware

Below are the key categories and descriptions of common earthing fitting accessories:

1. Ground Rods

Types: Solid Copper, Copper-Bonded Steel, Galvanized Steel

Function: Main electrode driven into the ground

Standard Sizes: 1/2", 5/8", 3/4" diameter; Lengths from 1.5 to 3 meters

2. Driving Heads / Tips / Studs

Material: Hardened steel or copper alloy

Function: Protects rods during driving, ensures clean insertion

Variants: Bullet tip, conical tip, reusable heads

3. Couplers / Couplings

Material: Copper alloy (threaded female-to-female)

Function: Joins multiple rods for deep grounding

Rod Compatibility: 14.2 mm, 17.2 mm, 19 mm

4. Ground Rod Clamps

Types: U-Bolt Clamp, Split Bolt, Parallel Groove Clamp

Function: Connects conductor cable to the ground rod securely

Materials: Brass, Bronze, Gunmetal, Copper

5. Lay-In Ground Clamps

Material: Cast bronze or aluminum

Function: Enables quick cable insertion without disconnection

Use Case: Lightning protection and fast cable layout

6. Earth Bars / Copper Busbars

Function: Central point for grounding multiple connections

Accessories: Insulators, base supports, brass terminals

Material: Tinned or bare copper

7. Cable Lugs / Terminal Lugs

Types: Ring, Fork, Spade, Pin Type

Function: Termination of earthing conductors for bolt connections

Materials: Electro-tinned copper or brass

8. Exothermic Welding Accessories

Components: Graphite molds, welding powder, clamps

Function: Permanent, high-conductivity bonding of conductors

9. Clamps & Connectors

Examples: T-Clamps, C-Clamps, U-Clamps

Material: High-conductivity copper alloy or galvanized steel

Function: Mechanically connects grounding conductors

1. Inspection Pits (Polymer/Concrete)
2. Earth Enhancing Compounds (Bentonite/GEM)
3. Brass Cable Glands
4. Bonding Jumpers
5. Surge Arresters

1. Ensure low-resistance earthing
2. Provide mechanical strength and corrosion resistance
3. Improve safety of electrical and lightning protection systems
4. Comply with international standards (IEC, BS, IEEE)

1. Substations & switchgear
2. Telecommunications towers
3. Oil & gas pipelines
4. Solar & wind farms
5. Building electrical systems
6. Lightning protection networks

✔️ Sample Time: Available in 5-10 days for different items.

✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.

✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications

✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
