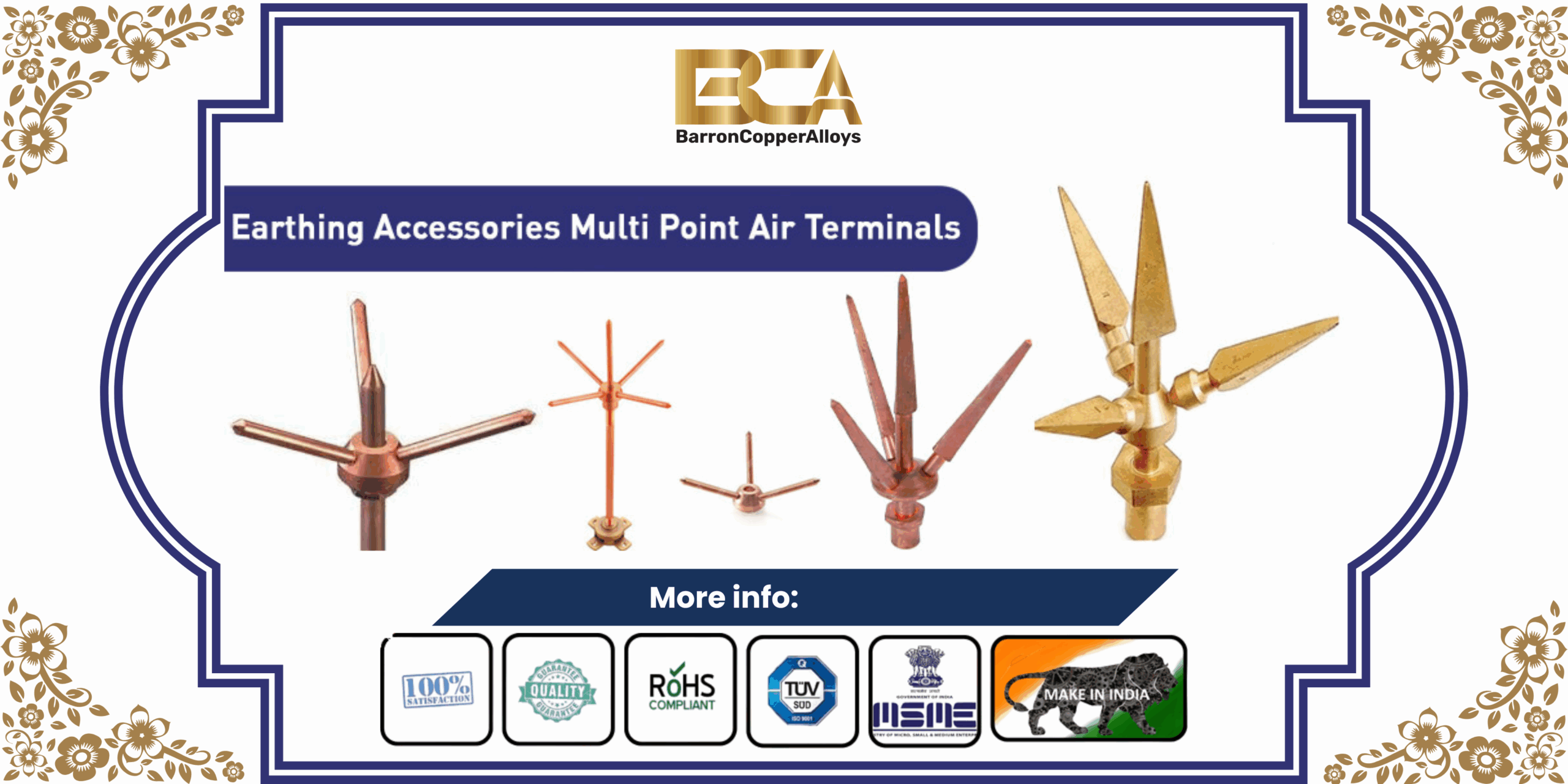

Earthing Accessories Multi Point Air Terminal
🛠️ What is a Multi Point Air Terminal?
A Earthing Accessories Multi Point Air Terminal (also known as a Multi Spike Lightning Arrestor or Multi-Tip Air Rod) is a specialized component of a lightning protection system. It consists of multiple pointed rods or spikes made of high-conductivity copper or aluminum, mounted on a base. The terminal is designed to intercept lightning strikes and safely transfer the high-voltage current to the ground via a down conductor and earthing system.
Multi Point Air Terminal
Copper Lightning Arrestor
Lightning Protection Air Rod
Multi Spike Lightning Terminal
Rooftop Lightning Protection System
Air Terminal for Earthing System
🌩️ Purpose & Function
- Acts as a strike-receiving point for lightning
- Reduces the risk of structural damage by offering preferential discharge points
- Multiple tips increase the ionization area and effectiveness
- Safely channels lightning energy into the earthing system
⚙️ Key Features
- Multiple sharp copper/aluminum spikes (typically 3, 5, or 7)
- Mounted on a central rod or base plate
- High conductivity and corrosion resistance
- Can be installed on buildings, masts, chimneys, solar panels, or towers
- Supports connection with flat strip or round conductor
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Electrolytic Copper / Aluminum Alloy |
| Finish | Natural / Bright / Tinned / Anodized |
| No. of Points | 3 / 5 / 7 (custom configurations available) |
| Rod Diameter | 12 mm – 25 mm |
| Rod Height | 300 mm – 1200 mm |
| Base Plate | Circular or square with mounting holes |
| Mounting Options | Roof Mount, Pole Mount, or Flat Surface |
| Standards | IEC 62305, IS/IEC 62561, BS EN 50164 |
✅ Advantages
- Improved lightning interception due to multiple sharp points
- Corrosion-resistant and weatherproof
- Suitable for high-risk structures and critical assets
- Customizable designs for specific installations
- Provides long service life with minimal maintenance
🧰 Applications
- Rooftop lightning protection
- Telecommunication towers
- Solar farms and wind turbines
- Industrial plants and warehouses
- Airports and railway stations
- Oil refineries and chemical plants
🛠️ Installation Notes
- Mount the air terminal at the highest point of the structure
- Use insulated or bare down conductor to connect to the earthing system
- Ensure proper equipotential bonding with other LPS components
- Inspect periodically for corrosion, looseness, or damage
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
