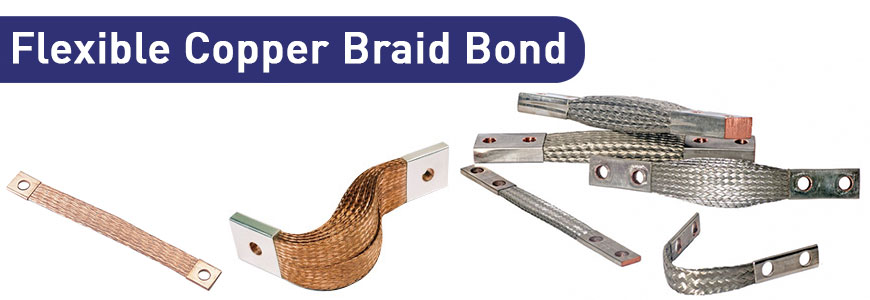

A Flexible Copper Braid Bond is a woven copper conductor used to create flexible electrical connections between equipment, structures, or grounding points. These bonds provide excellent electrical conductivity, mechanical flexibility, and vibration resistance, making them ideal for situations where movement or expansion occurs.

They are commonly used in earthing, lightning protection, transformer connections, and busbar bonding.

1. Flexible Copper Braid Bond
2. Copper Braided Connector
3. Earthing Braid
4. Tinned Copper Braided Strap
5. Copper Grounding Jumper
6. Copper Flexible Link

1. Made from annealed tinned or bare copper wires

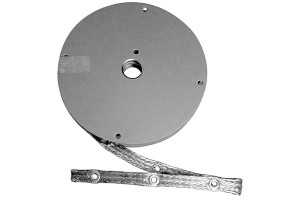

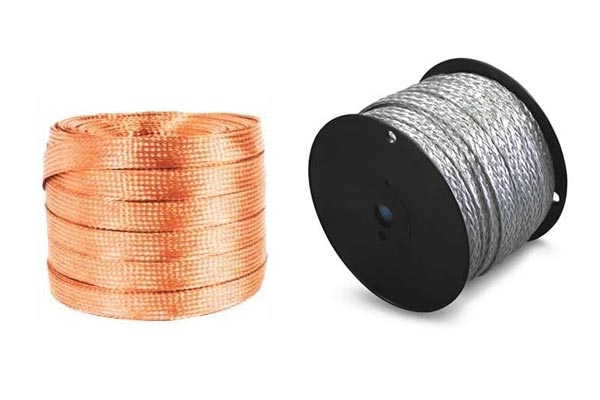

2. Constructed as flat braid or round braid
3. Ends can be plain, tinned, or fitted with terminals/lugs
4. Designed for high flexibility, low resistance, and long service life
5. Excellent for dynamic connections or where vibration is present

1. Highly flexible – ideal for moving parts and thermal expansion
2. Corrosion-resistant (especially tinned version)
3. Provides vibration isolation
4. Ensures low-impedance grounding
5. Easy to customize in length and terminations
6. Improves reliability in electrical bonding

1. Transformer & switchgear connections
2. Busbar linkages and grounding
3. Panel boards and earthing systems
4. EMI shielding and bonding
5. Lightning protection systems
6. Mobile/rotating machinery grounding

1. Secure the braid using bolted, soldered, or crimped terminations
2. Avoid excessive twisting or bending at stress points
3. Use insulated versions if required for high-voltage areas
4. Ensure proper current rating is selected for your load

✔️ Sample Time: Available in 5-10 days for different items.

✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.

✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications

✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
