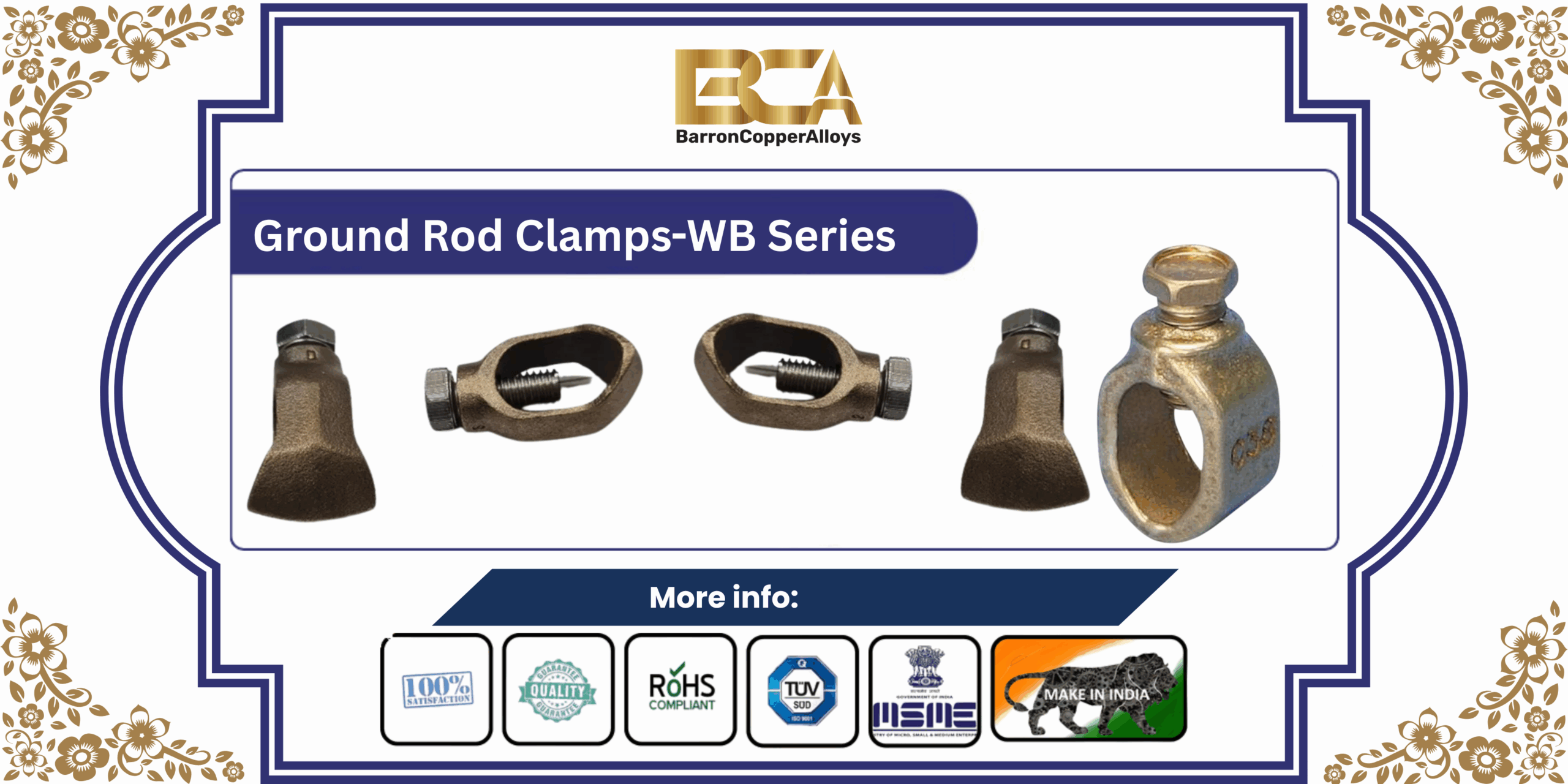

Ground Rod Clamps-WB Series are precision-engineered electrical fittings used to securely connect ground conductors (copper wire or cable) to ground rods. These clamps ensure a reliable, low-resistance connection for grounding systems in electrical installations. Designed for durability and corrosion resistance, the WB Series is widely used in commercial, industrial, and utility applications.

• Ground Rod Clamps WB Series

• WB Series Grounding Clamps

• Ground Rod Clamp Brass

• Grounding Connector for Rod

• Electrical Earthing Clamp

• Copper Alloy Ground Clamps

• UL Listed Ground Rod Clamp

• Heavy Duty Ground Clamps

• Rod to Conductor Grounding Clamp

• Ground Clamp for Lightning Protection

✔️ Clamp Body: Made from high-strength forged brass or copper alloy for superior conductivity and corrosion resistance.

✔️ Hardware: Equipped with stainless steel bolts or silicon bronze screws for long service life.

✔️ Design Type: Two-piece saddle clamp or U-bolt style, designed for strong mechanical grip and long-term stability.

✔️ Conductor Compatibility: Accepts solid or stranded copper wire (bare or tinned).

✔️ Earthing/Grounding of buildings, transformers, and electrical panels

✔️ Lightning protection systems

✔️ Used in residential, commercial, and industrial ground grid systems

✔️ Ideal for use with copper-bonded or galvanized ground rods

• ✔️ Strong, corrosion-resistant brass body ensures long-lasting connections

• ✔️ High-strength hardware offers secure mechanical grip

• ✔️ Suitable for use in harsh outdoor environments

• ✔️ Ensures low contact resistance for effective grounding

• ✔️ Compatible with standard UL-approved grounding rods

✔️ WB-38 – For 3/8” rod and #10–#6 AWG wire

✔️ WB-50 – For 1/2” rod and #8–#4 AWG wire

✔️ WB-58 – For 5/8” rod and #6–#2 AWG wire

✔️ WB-75 – For 3/4” rod and #4–2/0 AWG wire
(Custom sizes available on request)

✔️ Tin-plated finish for marine or corrosive environments

✔️ Heavy-duty version for industrial-grade applications

✔️ Available in UL-listed and non-UL variants

✔️ Sample Time: Available in 5-10 days for different items.

✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.

✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications

✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
