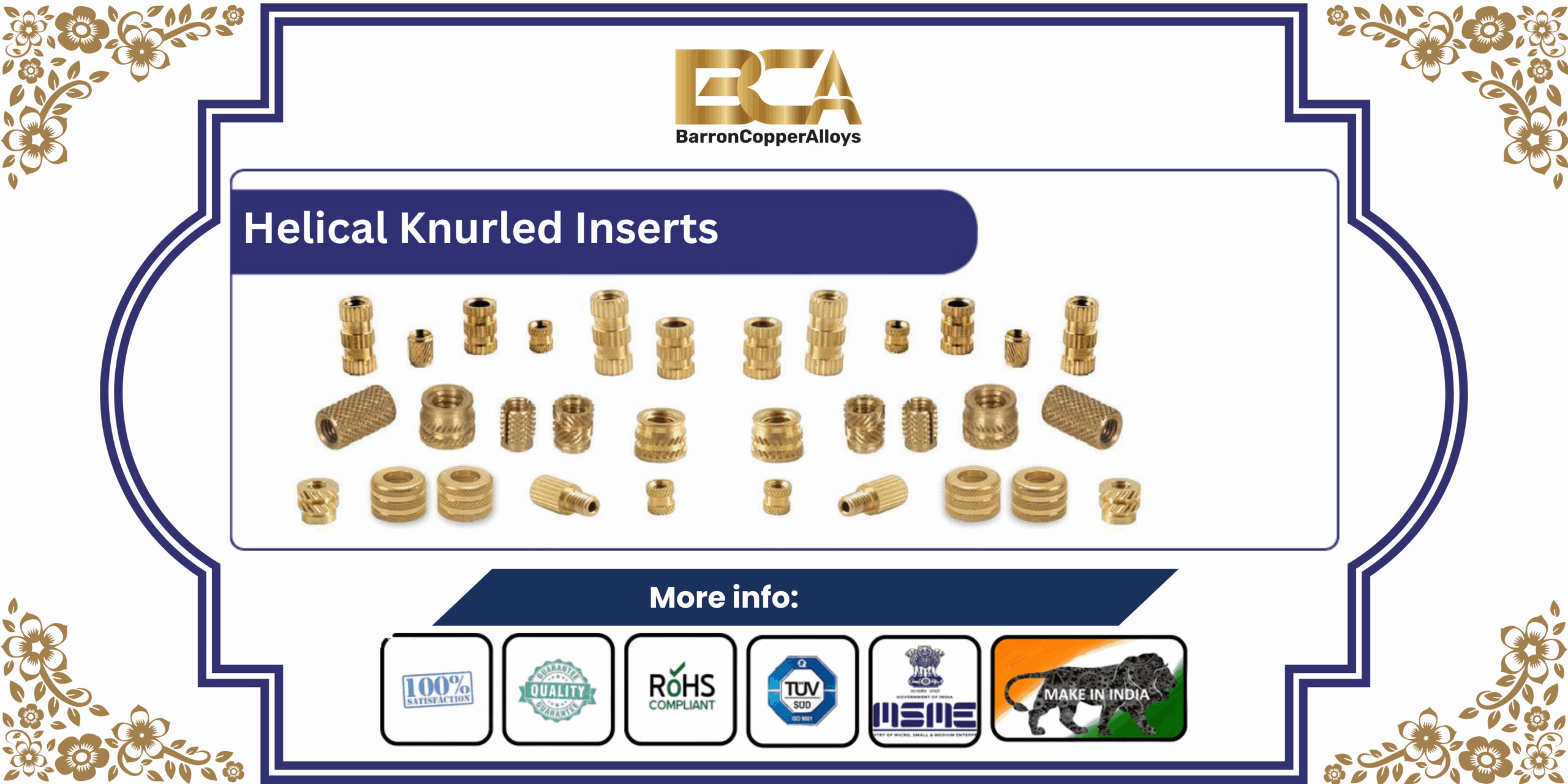

Helical Knurled Inserts

Helical Knurled Inserts are precision-engineered threaded metal inserts designed with helical (spiral) knurl patterns on their outer surface. These knurls provide exceptional grip and torque resistance when installed into plastic, thermoset, 3D-printed parts, and soft metals.

They are typically press-fit, heat-installed, or ultrasonic-installed, depending on the material and insert type.

• ✔ Helical Knurl for Maximum Grip

  • The spiral knurl pattern cuts and embeds into the host material.

  • Provides very high pull-out strength and torque resistance.

  ✔ Strong Internal Threads

  • Precision machine-formed threads (Metric / UNC / UNF).

  • Designed for repeated assembly without thread wear.

  ✔ Multiple Installation Methods

  • Heat installation

  • Ultrasonic insertion

  • Press-fit / mould-in options

  • Ensures flexibility across production environments.

  ✔ Ideal for Plastics & 3D-Printed Parts

  • Designed to melt/flow plastic around the knurls during installation.

  • Ensures permanent, tight, and load-bearing fastening points.

•

1. Heat-Set Helical Inserts

• Installed into thermoplastics using soldering iron or heating tools.

• Common in 3D-printed parts (ABS, PLA, Nylon).

2. Ultrasonic Inserts

• Installed using ultrasonic welder.

• Ideal for mass production.

3. Press-Fit / Cold-Press Inserts

• For soft plastics & thermosets

• Installed with arbor press / manual tools.

4. Mould-In Helical Inserts

• Placed inside the mould cavity before injection moulding.

• Provides the strongest possible anchoring.

Brass (Most Common)

• Excellent machinability

• High corrosion resistance

• Perfect for plastic applications

Stainless Steel

• For high-strength and high-temperature applications

• Suitable for metal housings & industrial components

Aluminum / Zinc

• Lightweight applications

• Less common but available

• Plastic components

• Electrical & electronic housings

• Automotive interior parts

• Consumer appliances

• 3D-printed parts (FDM/FFF/SLS)

• Medical devices

• PCB mounting points

• Enclosures & plastic bosses

• High torque resistance (thanks to helical knurl)

• Strong mechanical locking

• Prevents thread stripping in plastic parts

• Long-life reusable threads

• Simple installation methods

• Compatible with most thermoplastics

Sample Time:Available in 5-10 days for different items.

Drawing Format:CAD / PDF / DWG / IGS / STEP.

Packaging:Standard package, Carton box or Pallet, As per customized specifications

Shipping:DHL, FEDEX, UPS and By Sea or as per client’s requirements.
