Lay-In Ground Clamp

  • Home
  • Lay-In Ground Clamp
Copper Rod Cable Clamps

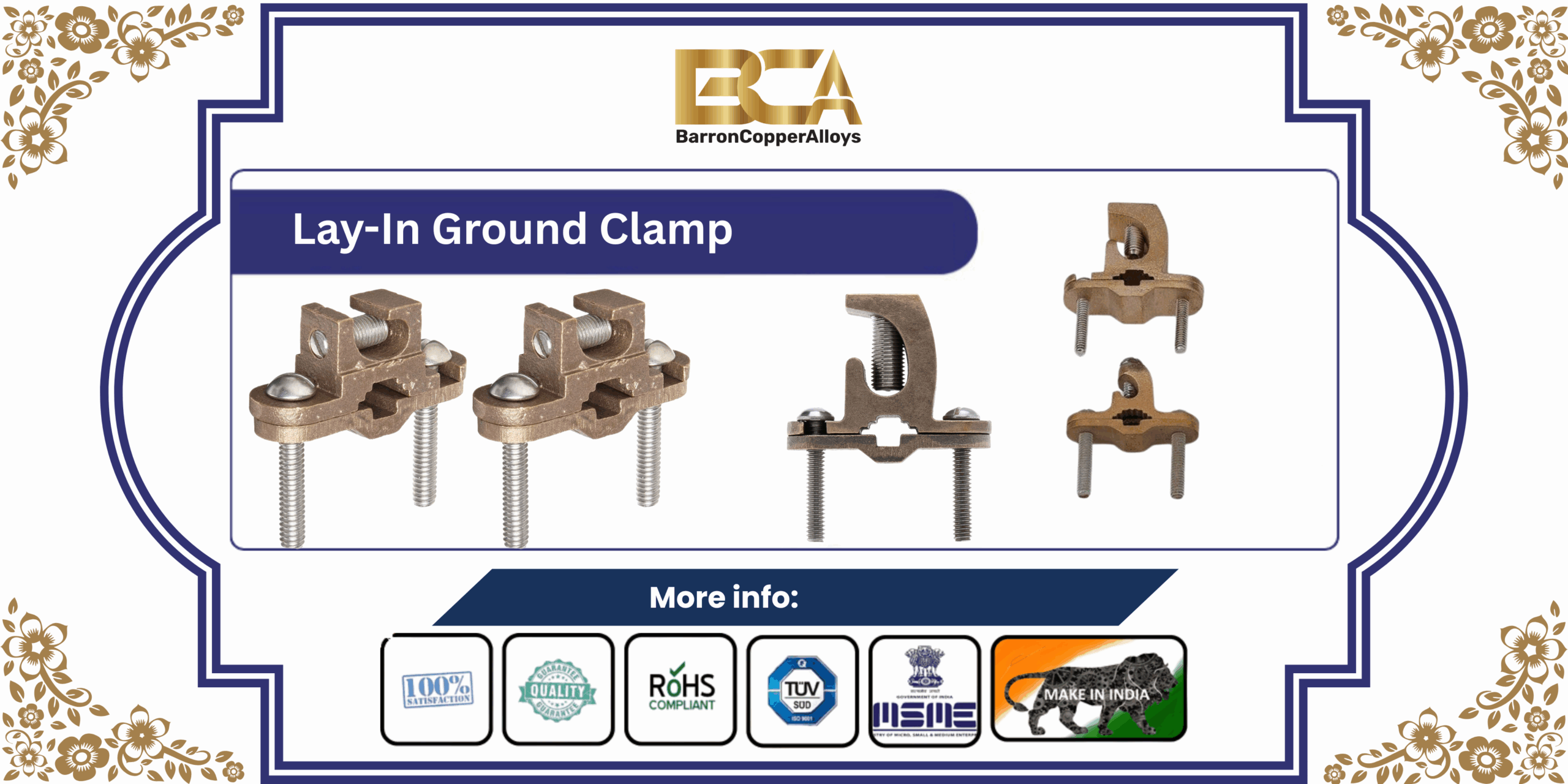

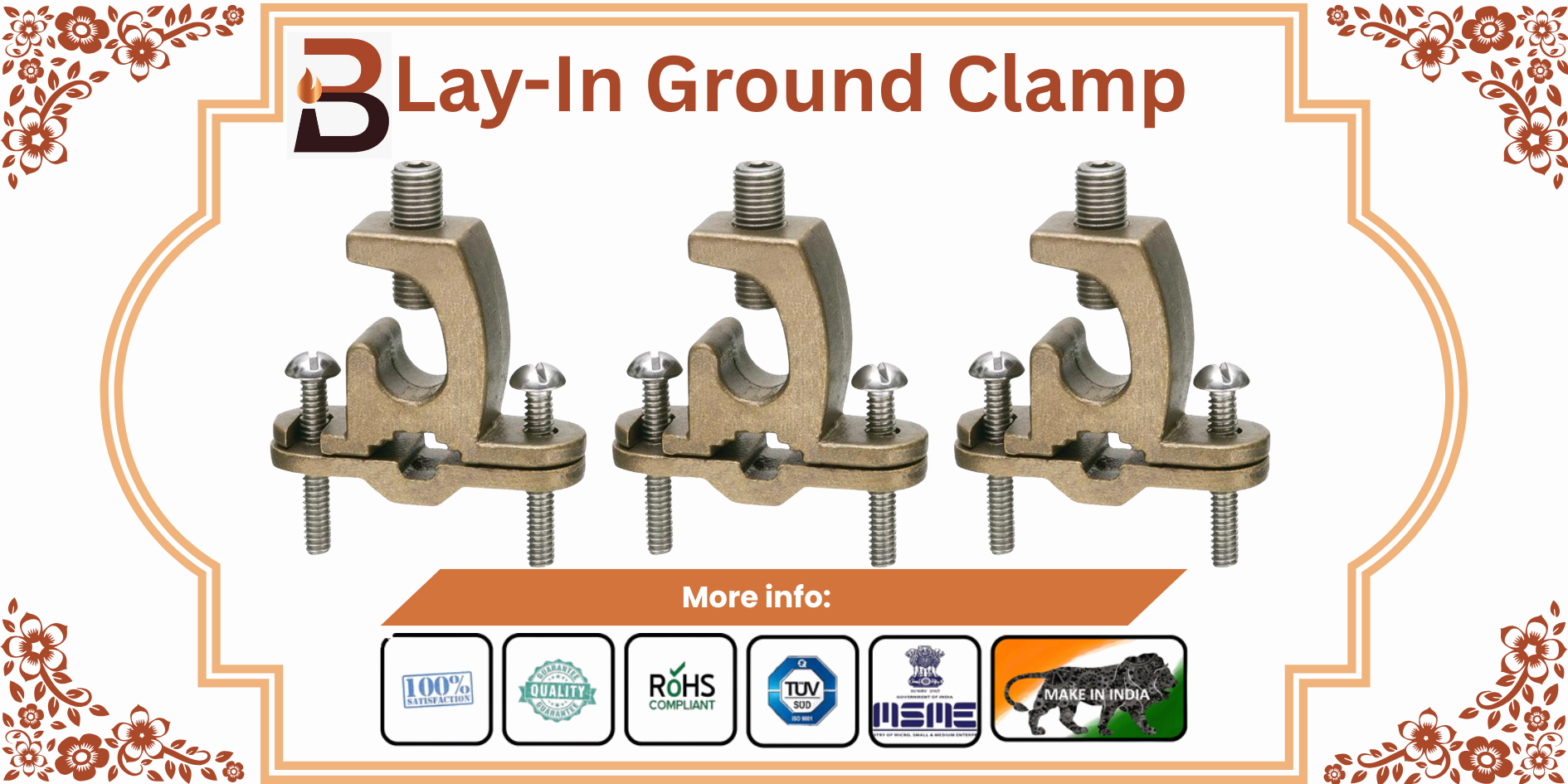

📌 What is a Lay-In Ground Clamp?

A Lay-In Ground Clamp is an electrical connector designed to securely bond ground wires to metallic surfaces such as water pipes, ground rods, steel structures, or rebar. Its open “lay-in” design allows the grounding conductor to be installed without removing the screw or disassembling the clamp—making it highly efficient for fieldwork.

  • Lay-In Ground Clamp

  • Grounding Clamp

  • Electrical Ground Clamp

  • Copper Lay-In Clamp

  • Ground Rod Clamp

  • UL Listed Ground Clamp

  • Direct Burial Ground Clamp

  • Pipe Grounding Clamp

  • Ground Clamp for Rebar

  • Lay-In Bonding Connector

🧱 Materials

  1.  Brass – Corrosion-resistant and ideal for long-term outdoor or underground use
  2. Copper – Excellent conductivity; used for direct burial applications
  3. Bronze – Strong and corrosion-resistant, suitable for harsh environments
  4. Aluminum – Lightweight, used in non-corrosive indoor applications
  5. Stainless Steel (hardware) – For marine or wet environments

🔩 Key Features

  1. Lay-in slot for easy conductor installation
  2. Designed for fast and tool-friendly installation
  3. Typically includes stainless steel screws for secure tightening
  4. Accepts a wide range of conductor sizes (solid or stranded)
  5. Suitable for direct burial in earth or concrete (depending on material)
  6. Some models include UL 467 or CSA approvals for grounding/bonding use

📐 Technical Specifications

Parameter Typical Range
Conductor Range 14 AWG to 4/0 AWG (varies by model)
Mounting Range 1/2" to 2" pipe or structural metal
Torque Rating As per UL standards (usually 35–50 in-lbs)
Certification UL 467 Listed / CSA Certified / RoHS Compliant
Temperature Rating -40°C to 90°C or higher

🛠️ Applications

  1. Grounding water pipes and steel conduit
  2. Bonding rebar or structural steel in construction
  3. Grounding rooftop solar systems
  4. Residential, commercial, and industrial electrical installations
  5. Use in telecom grounding and lightning protection systems

✅ Advantages

  1. Toolless conductor insertion with lay-in design
  2. Quick installation saves labor time
  3. Compatible with copper or aluminum conductors
  4. Secure and corrosion-resistant grounding connection
  5. Available in direct burial and indoor-only versions

Other Information

  1. Sample Time: Available in 5-10 days for different items.
  2. Drawing Format: CAD / PDF / DWG / IGS / STEP.
  3. Packaging: Standard package, Carton box or Pallet, As per customized specifications
  4. Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
