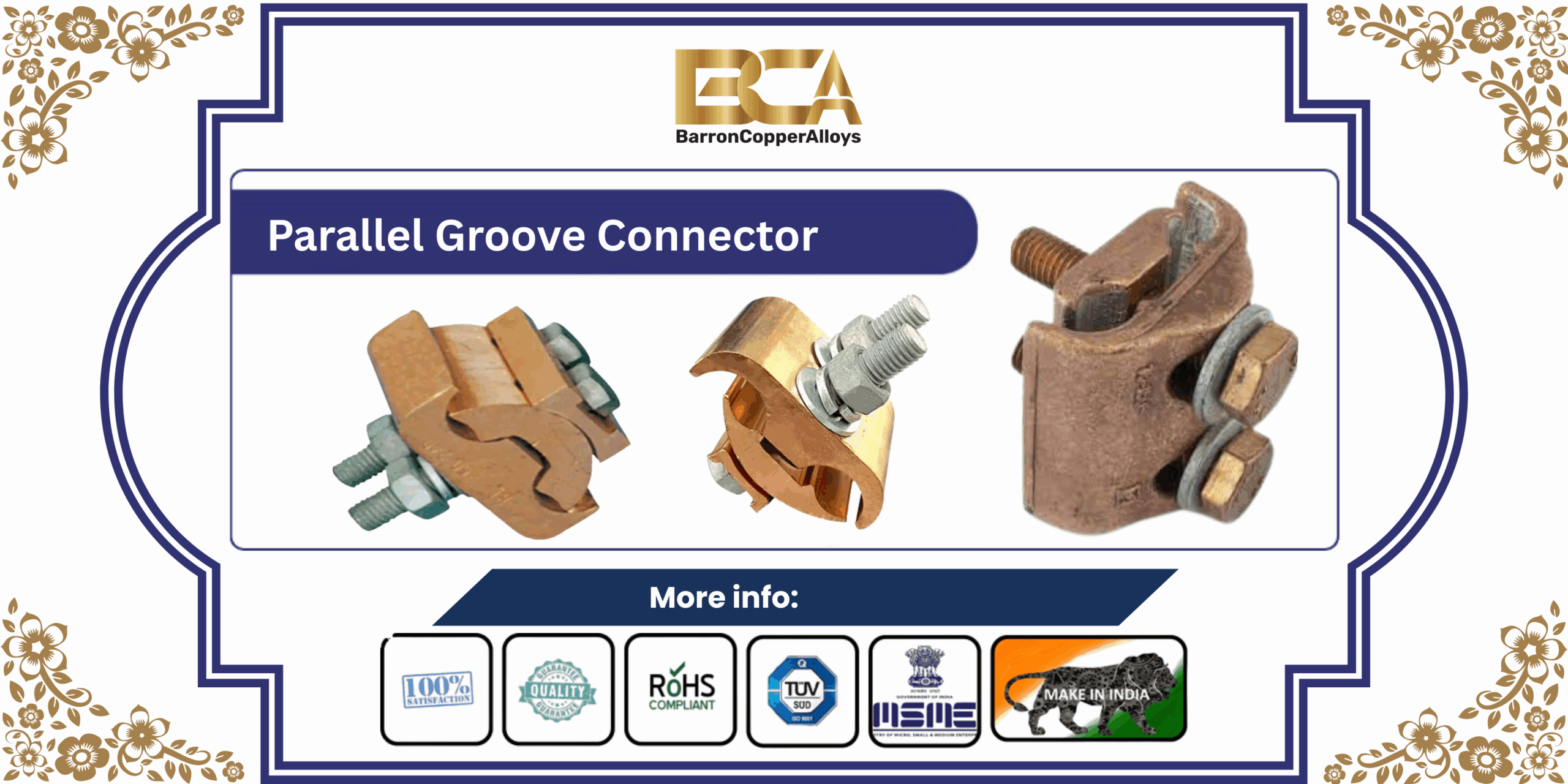

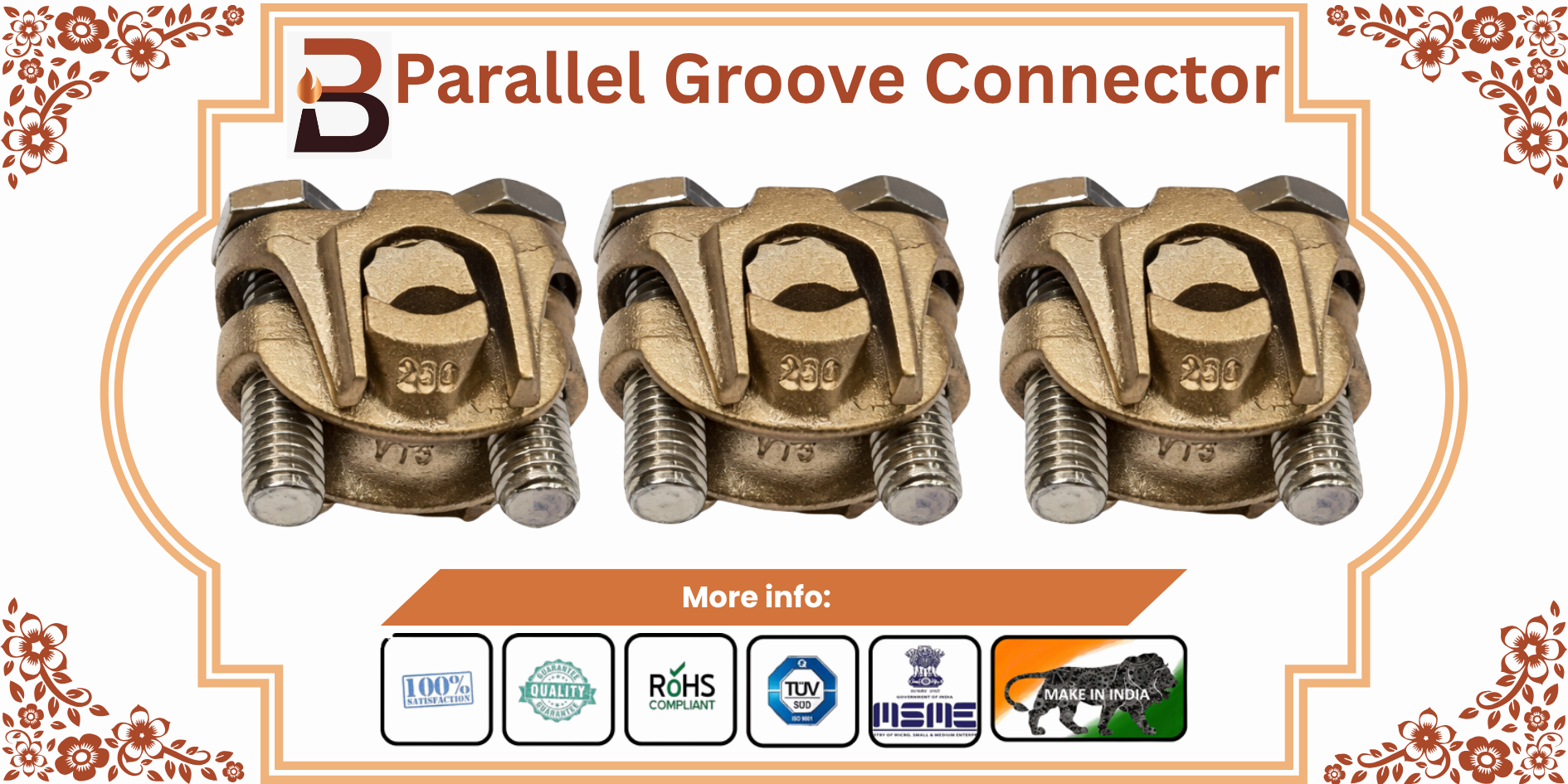

⚡ Parallel Groove Connector

A Parallel Groove Connector (PG Connector) is an electrical fitting used to connect two parallel conductors (usually aluminum or copper) without cutting them. It ensures a secure and efficient electrical connection in overhead transmission and distribution systems.
A Parallel Groove Connector is a mechanical clamp-type connector designed to connect two parallel conductors without cutting or damaging the conductors. It’s commonly used in overhead transmission lines and earthing systems.

🔧 Primary Keywords:

  • Parallel Groove Connector

  • PG Clamp

  • Electrical Groove Connector

  • Overhead Line Connector

  • Aluminum PG Connector

  • Copper PG Clamp

  • Bimetal PG Connector

🔍 Long-Tail Keywords:

  • Parallel groove clamp for overhead conductors

  • Electrical PG connector for transmission lines

  • Bimetallic parallel groove clamp

  • High voltage PG connector

  • PG clamp for ABC cable

  • Aluminum to copper PG connector

🧩 Types of Parallel Groove Connectors:

  • Single Bolt PG Connector

    • For small-size conductors

    • Used where less mechanical load is expected

  • Double Bolt PG Connector

    • For medium to large conductors

    • Ensures better contact pressure

  • Three Bolt PG Connector

    • Used for heavy-duty power lines

    • For high mechanical strength and current flow

📐 Technical Parameters:

Parameter Typical Range
Conductor Range 6 mm² to 500 mm²
Bolt Size M8, M10, M12 (depends on load requirement)
Rated Voltage Up to 33 kV (for LV/MV lines)
Current Carrying Capacity Depends on conductor and body material
Torque Specification Typically 20–45 Nm (check manufacturer)

🧪 Standards Compliance:

  1. IEC 61284 (Overhead lines – fittings)
  2. ASTM B117 (Corrosion resistance)
  3. IS 5561 (Indian Standard for electric fittings)
  4. BS EN 50483 (Low voltage aerial bundled cable fittings)

🏷️ Materials Options:

  1. Aluminum Alloy (LM6 or LM25) – Lightweight and corrosion-resistant
  2. Copper Alloy / Brass – For grounding or earthing applications
  3. Bimetallic PG Connectors – For joining aluminum to copper conductors

🔩 Construction & Components:

  1. Body & Top Plate: Usually made from high-strength aluminum alloy (or brass/bronze for grounding applications)
  2. Bolts & Nuts: Hot dip galvanized or stainless steel
  3. Pressure Pad / Keeper: Ensures even pressure across the conductors
  4. Insulating Cover (optional): For added safety and weather protection
  5. Anti-Oxidant Compound (optional): Applied to reduce corrosion and improve conductivity

🛠️ Key Features:

  1. Non-destructive connection – no need to cut the main line
  2. High conductivity & corrosion resistance
  3. Compact and lightweight design
  4. Easy installation using standard spanners or tools
  5. Available in tinned, bare, or coated finishes
  6. Optional insulation covers for outdoor/weather protection

⚙️ Applications:

  1. Overhead power distribution lines
  2. Grounding and bonding of conductors
  3. Tapping a line without interruption
  4. Joining of aerial bundled cables (ABC)
  5. Electrical substation and pole hardware

Other Information

Sample Time:Available in 5-10 days for different items.

Drawing Format:CAD / PDF / DWG / IGS / STEP.

Packaging:Standard package, Carton box or Pallet, As per customized specifications

Shipping:DHL, FEDEX, UPS and By Sea or as per client’s requirements.
