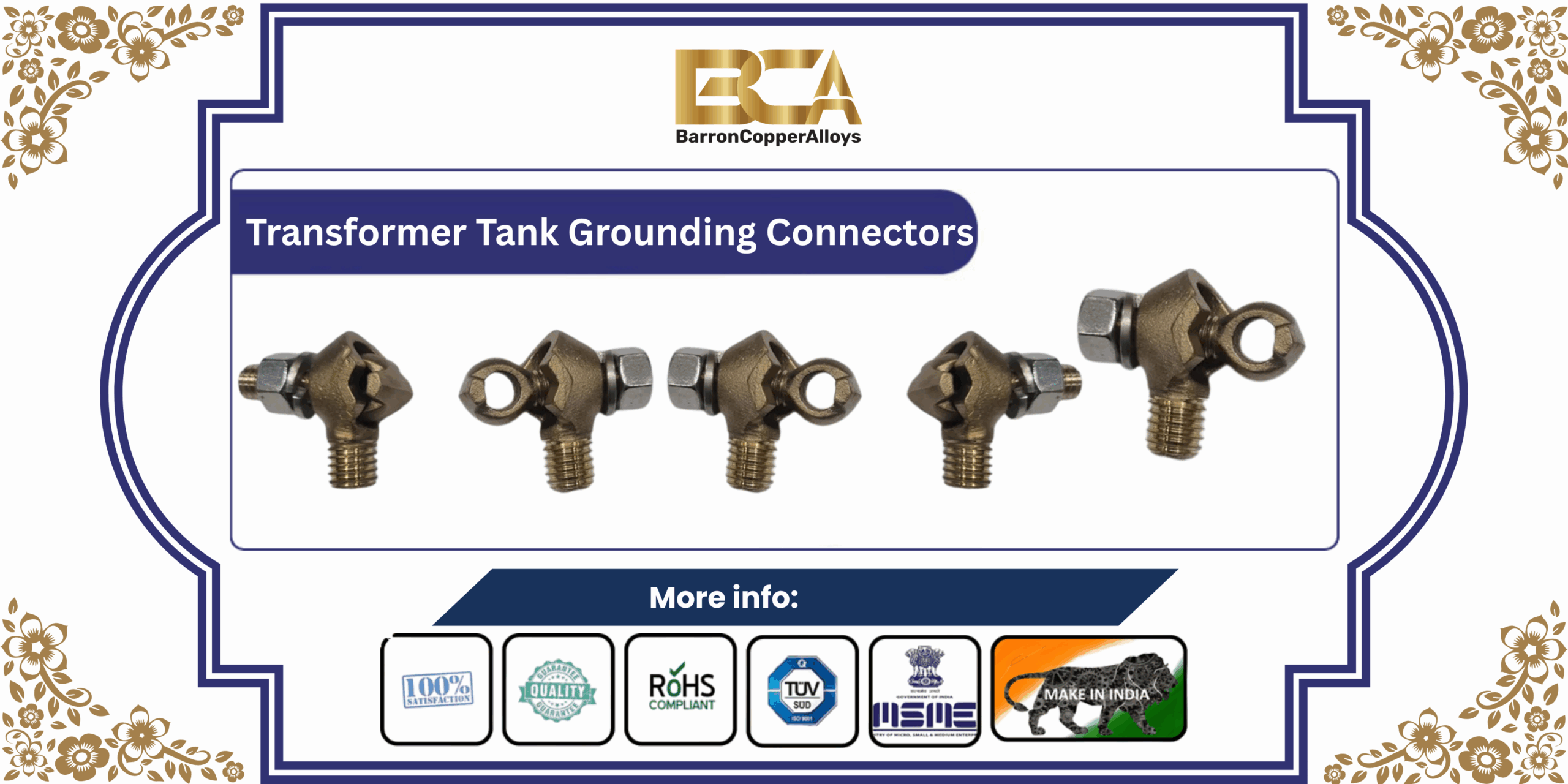

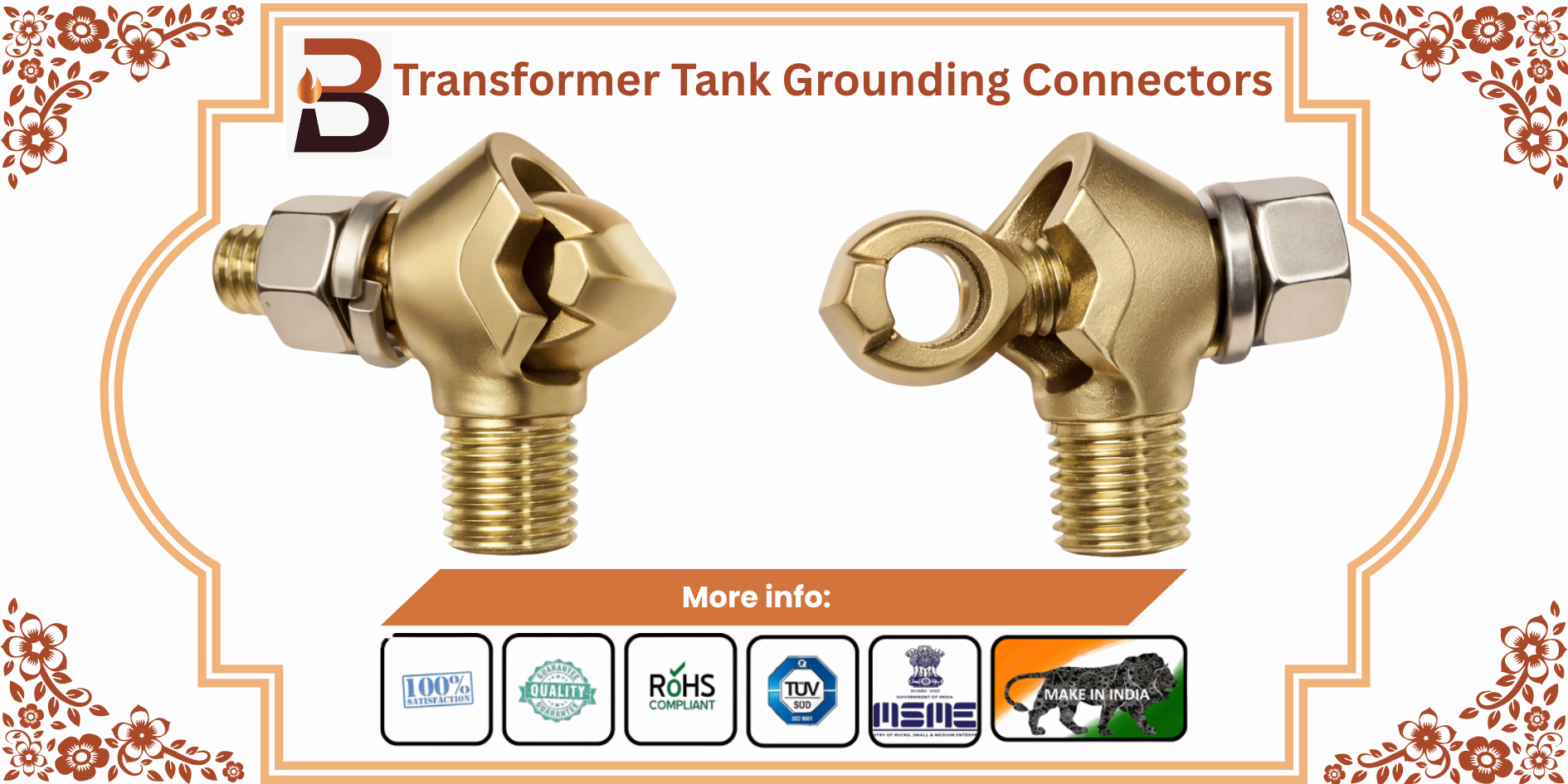

Transformer Tank Grounding Connectors
🔧 Transformer Tank Grounding Connectors – Detailed Overview
Transformer Tank Grounding Connectors are engineered grounding components used to create a secure and highly conductive bond between a power transformer’s metallic tank and the substation grounding system. They play a critical role in safely channeling fault or leakage currents to earth, minimizing the risk of equipment damage and protecting personnel.
-
Transformer Tank Grounding Connector
-
Transformer Ground Connector
-
Grounding Clamps for Transformers
-
Transformer Earth Connector
-
Substation Grounding Accessories
-
Copper Grounding Lugs
🛠️ Construction and Design:
-
Body Material: High-conductivity electrolytic copper or high-strength brass (also available in tinned or nickel-plated finishes for corrosion resistance).
-
Clamping Mechanism: Includes stainless steel bolts, nuts, and washers, ensuring long-term mechanical stability.
-
Design Format: Options include U-bolt, lay-in lug, or saddle clamp designs to accommodate various transformer tank configurations.
-
Surface Treatment: Tin/lead plating or passivation to prevent corrosion and ensure longevity in harsh environments.
-
Insulation Options: Available with insulating bushings if required for specific applications.
📏 Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | ETP Copper / Brass / Bronze |
| Conductor Range | 6 AWG to 500 MCM or customized |
| Finish | Natural / Tin Plated / Nickel Plated |
| Operating Voltage | Up to 36 kV |
| Current Rating | Up to 600 Amps |
| Temperature Range | -40°C to +105°C |
| Mounting Type | Bolt-on / Clamp-on |
| Standards | IEEE 80, IEC 61230, UL 467 |
⚙️ Applications:
- Transformer grounding in electrical substations
- Power distribution networks (utility & industrial)
- Switchgear and control panel grounding
- Transformer grounding in renewable energy systems
- Lightning protection systems
🌟 Key Features & Benefits:
✔️ High-conductivity materials ensure low resistance grounding
✔️ Corrosion-resistant finish for outdoor/industrial environments
✔️ Easy installation with standard hardware
✔️ Customizable to suit specific transformer designs
✔️ Helps comply with electrical safety and grounding codes
📦 Optional Variants:
✔️ With or without test points
✔️ Insulated or bare versions
✔️ Custom hole sizes and bolt patterns
✔️ Available in single or multi-conductor configurations
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
