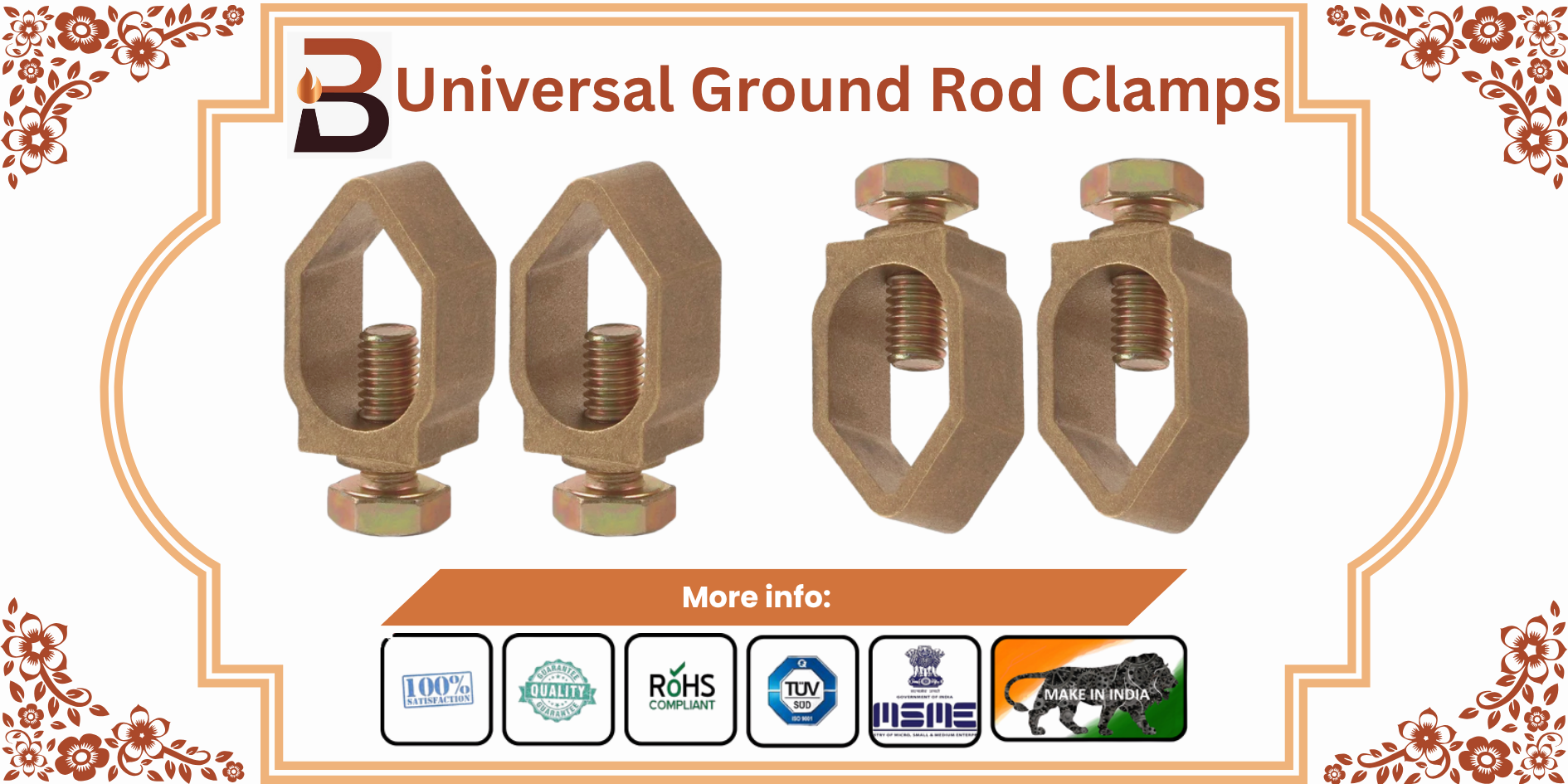

Universal Ground Rod Clamps
⚡ Universal Ground Rod Clamps – Product Detail
Universal Ground Rod Clamps are versatile grounding accessories designed to connect a variety of copper or galvanized ground rods to bare conductors. Their adaptable design allows them to fit multiple rod sizes and wire gauges, making them ideal for a wide range of residential, commercial, and industrial grounding applications. These clamps ensure a low-resistance path to earth and comply with major grounding standards.
-
Universal Ground Rod Clamp
-
Ground Rod Clamp Copper
-
UL Grounding Clamp
-
Adjustable Ground Rod Clamp
-
Ground Rod to Conductor Clamp
-
Electrical Ground Clamp
-
Versatile Grounding Connector
-
Brass Ground Rod Clamp
-
Ground Clamp for Earthing Rod
-
Outdoor Grounding Clamp
🛠️ Construction & Design:
-
Clamp Body: Made from high-conductivity forged brass, bronze, or copper alloy.
-
Hardware: Features silicon bronze or stainless steel screws for corrosion resistance and strong mechanical fastening.
-
Design: Universal-style saddle or U-bolt clamps accommodate a wide variety of rod diameters and conductor sizes.
-
Surface Treatment: Natural, tin-plated, or nickel-plated finish available based on environmental needs.
-
Adjustable Fit: Designed to fit round ground rods and various conductor types (solid or stranded).
📏 Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | Brass / Bronze / Copper Alloy |
| Rod Size Compatibility | 3/8” to 3/4” (or customizable) |
| Conductor Range | #10 AWG to 2/0 AWG |
| Finish | Natural / Tin Plated / Nickel Plated |
| Torque Rating | 50–70 in-lbs (depending on model) |
| Temperature Rating | -40°C to +105°C |
| Certifications | UL 467 Listed / CSA / NEC Compliant |
⚙️ Applications:
-
Grounding of electrical panels, transformers, and building structures
-
Suitable for substation, solar, and lightning protection systems
-
Used in residential, commercial, industrial, and utility grounding setups
-
Effective in moist, corrosive, or high-conductivity soil conditions
🌟 Key Features & Benefits:
-
✔️ Universal design fits multiple rod and wire sizes
-
✔️ Made from high-conductivity materials for efficient grounding
-
✔️ Corrosion-resistant hardware suitable for outdoor/underground use
-
✔️ Quick and easy installation with standard tools
-
✔️ Meets or exceeds UL and NEC grounding standards
🔧 Available Variants:
-
Universal clamp for copper-bonded rods
-
Universal clamp for galvanized steel rods
-
Heavy-duty industrial-grade versions
-
With test-point terminal (optional)
-
Compact or standard saddle profiles
⚡Specification Sheet
| Feature | Details |
|---|---|
| Product Name | Universal Ground Rod Clamp |
| Material | High Conductivity Brass / Bronze / Copper Alloy |
| Finish Options | Natural / Tin-Plated / Nickel-Plated |
| Rod Compatibility | 3/8" to 3/4" Ground Rods (Copper or Galvanized) |
| Conductor Range | #10 AWG – 2/0 AWG (Solid or Stranded) |
| Mounting Type | Saddle Clamp / U-Bolt Style |
| Bolt/Screw Material | Stainless Steel / Silicon Bronze |
| Temperature Range | -40°C to +105°C |
| Torque Rating | 50–70 in-lbs |
| Certifications | UL 467, CSA Certified, NEC Compliant |
| Applications | Grounding in residential, industrial, utility, solar & substation systems |
| Optional Features | Test point terminal, compact design, heavy-duty model |
Other Information
✔️ Sample Time: Available in 5-10 days for different items.
✔️ Drawing Format: CAD / PDF / DWG / IGS / STEP.
✔️ Packaging: Standard package, Carton box or Pallet, As per customized specifications
✔️ Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
